隨著OpenHarmony的版本更新,在3.2上已經提供了非常豐富的API來調用照相機。此處講解的是原生的使用相機的流程,并發像Android普通應用開發一樣通過一個intent直接調用系統相機應用進行拍照,根據原生的調用相機的API可以讓大家自己定義功能更加豐富的相機應用。
這里為何我特意強調是OpenHarmony3.2 beta4,因?yàn)槲野l(fā)現即使同為3.2版本,beta4上的Camera相關的api和beta2版本差距都非常大,于是選取了當前最新的版本進行講解。
既然使用相機,那么第一步是先想辦法把相機點亮,即能通過攝像頭看到預覽畫面,后面才是拍照、錄像、分布式拍照等功能實現。
關于sdk的問題
目前在OpenHarmony3.2上調用相機,需要使用ohos-full-sdk,而非大家下載DevEco Studio所帶的sdk,那個sdk被稱作為public sdk。關于sdk的替換辦法可以參考官方文檔“ ??full-SDK替換指南??”,我這里不過多贅述。

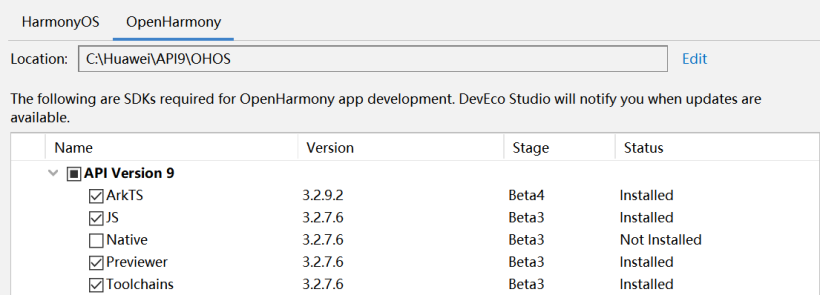

此處核心要注意的一點是,目前我3.2 beta4上用的sdk對應的版本號為3.2.9.4

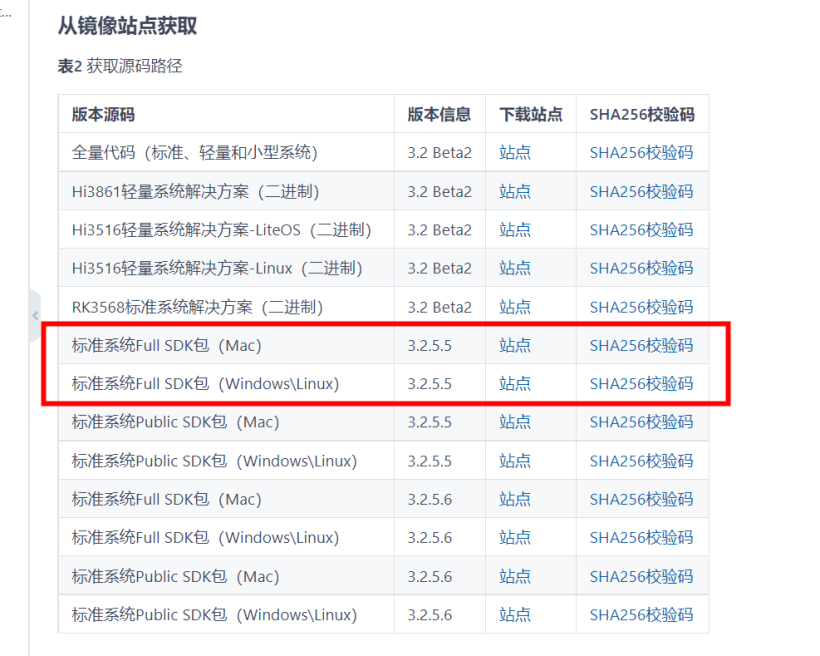

而目前官方文檔上寫的能下載到的sdk最高版本只有3.2.5.6。

因此,需要我們手動下載系統源碼,自己完成sdk的編譯才行,我這里是基于3.2 beta4的系統源碼自行編譯出來的full-sdk。
啟用相機打開預覽畫面核心流程與代碼實現
(1)動態權限申請
需要獲取ohos.permission.CAMERA權限
(2)相機相關API操作流程

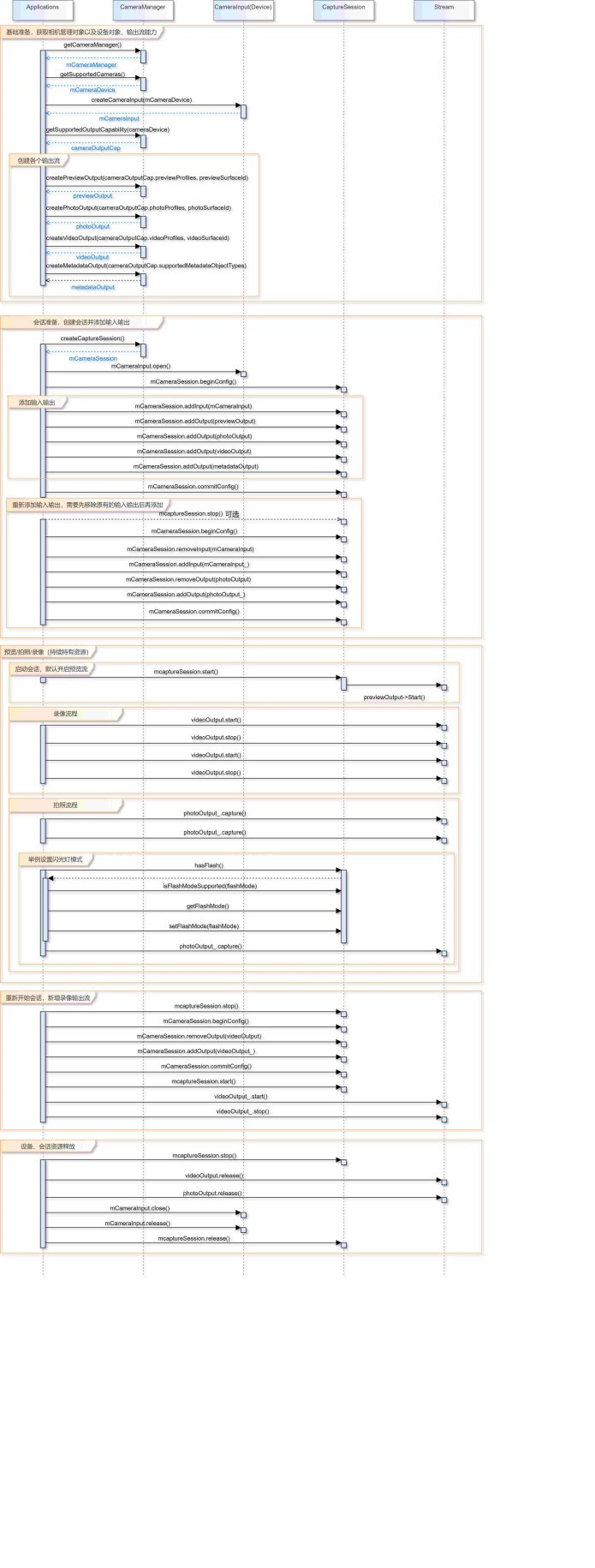

上面是相機完整功能使用的時序圖,這里我們先只按照時序圖中的流程只實現預覽部分。
(3)配合XComponent組件完成相機預覽流的輸出
XComponent組件中通過XComponentController的getXComponentSurfaceId方法可以獲取到sufaceId,然后通過相機管理對象cameraManager.createPreviewOutput這個關鍵方法可以綁定該surface,從而實現預覽畫面的輸出。
啟用相機打開預覽畫面代碼實現
import camera from '@ohos.multimedia.camera'
const PERMISSIONS: Array<string> = [
'ohos.permission.CAMERA']
let previewWidth;
let previewHeight;
@Entry
@Component
struct Index {
private mXComponentController: XComponentController = new XComponentController()
private surfaceId: string = '-1'
async initCamera(surfaceId: string){
//動態獲取隱私權限
let context = getContext(this) as any
await context.requestPermissionsFromUser(PERMISSIONS)
console.log('grantPermission,requestPermissionsFromUser');
// 創建CameraManager對象
let cameraManager = await camera.getCameraManager(context)
if (!cameraManager) {
console.error('Failed to get the CameraManager instance');
}
// 獲取相機列表
let cameraArray = await cameraManager.getSupportedCameras()
if (!cameraArray) {
console.error('Failed to get the cameras');
}
for (let index = 0; index < cameraArray.length; index++) {
console.log('cameraId : ' + cameraArray[index].cameraId) // 獲取相機ID
console.log('cameraPosition : ' + cameraArray[index].cameraPosition) // 獲取相機位置
console.log('cameraType : ' + cameraArray[index].cameraType) // 獲取相機類型
console.log('connectionType : ' + cameraArray[index].connectionType) // 獲取相機連接類型
}
// 創建相機輸入流
let cameraInput = await cameraManager.createCameraInput(cameraArray[0])
// 打開相機
await cameraInput.open().then(() => {
console.log('opencamera succ.');
}).catch(function(err){
console.log("opencamera failed with error:"+ err);
});
// 獲取相機設備支持的輸出流能力
let cameraOutputCap = await cameraManager.getSupportedOutputCapability(cameraArray[0]);
if (!cameraOutputCap) {
console.error("outputCapability outputCapability == null || undefined")
} else {
console.log("outputCapability: " + JSON.stringify(cameraOutputCap));
}
//獲取相機支持的輸出能力--支持的預覽配置信息
let previewProfilesArray = cameraOutputCap.previewProfiles;
if (!previewProfilesArray) {
console.error("createOutput previewProfilesArray == null || undefined")
}else{
console.log("previewProfiles:"+JSON.stringify(previewProfilesArray[0]))
previewWidth = previewProfilesArray[0].size.width;
previewHeight = previewProfilesArray[0].size.height;
}
// 創建預覽輸出流,其中參數 surfaceId 參考下面 XComponent 組件,預覽流為XComponent組件提供的surface
let previewOutput = await cameraManager.createPreviewOutput(previewProfilesArray[0], surfaceId)
if (!previewOutput) {
console.error("Failed to create the PreviewOutput instance.")
}else{
console.log("create the PreviewOutput instance succ.")
}
//創建會話
let captureSession = await cameraManager.createCaptureSession()
if (!captureSession) {
console.error('Failed to create the CaptureSession instance.');
return;
}
console.log('Callback returned with the CaptureSession instance.' + captureSession);
// 開始配置會話
await captureSession.beginConfig().then(()=>{
console.log('captureSession beginConfig succ');
}).catch(function(err){
console.log("captureSession beginConfig failed with error:"+ err);
});
// 向會話中添加相機輸入流
await captureSession.addInput(cameraInput).then(() => {
console.log('captureSession addInput instance is added.');
}).catch(function(err){
console.log("captureSession addInput failed with error:"+ err);
});
// 向會話中添加預覽輸入流
await captureSession.addOutput(previewOutput).then(() => {
console.log('captureSession addOutput previewOutput instance is added.');
}).catch(function(err){
console.log("captureSession addOutput previewOutput failed with error:"+ err);
});
// 提交會話配置
await captureSession.commitConfig().then(() => {
console.log('captureSession commitConfig success.');
}).catch(function(err){
console.log("captureSession commitConfig failed with error:"+ err);
});
// 啟動會話
await captureSession.start().then(() => {
console.log('captureSession start success.');
}).catch(function(err){
console.log("captureSession start failed with error:"+ err);
});
}
build() {
Flex() {
XComponent({ // 創建XComponent
id: '',
type: 'surface',
libraryname: '',
controller: this.mXComponentController
})
.onLoad(() => { // 設置onload回調
// 設置Surface寬高(1920*1080),預覽尺寸設置參考前面 previewProfilesArray 獲取的當前設備所支持的預覽分辨率大小去設置
this.mXComponentController.setXComponentSurfaceSize({surfaceWidth:previewWidth,surfaceHeight:previewHeight})
// 獲取Surface ID
this.surfaceId = this.mXComponentController.getXComponentSurfaceId()
this.initCamera(this.surfaceId)
})
.width('100%') // 設置XComponent寬度
.height('100%') // 設置XComponent高度
}
}
}
