概述
溫度傳感器(Temperature)Sensor驅動，對溫度傳感器進行上電，通過驅動入口，將溫度傳感器注冊到HDF驅動框架，對溫度傳感器驅動進行初始化，探測器件是否在位，并解析配置文件，最后通過溫度傳感器差異化代碼實現，為上層服務提供穩定的實時數據。溫度傳感器sensor開發主要包括三個部分：溫度傳感器通用傳感器驅動、溫度傳感器通用傳感器配置和器件差異化驅動?；贖DF（Hardware Driver Foundation）驅動框架的Sensor驅動模型，實現跨操作系統遷移，器件差異配置等功能。
備注：后續會考慮進入到OpenHarmony主線，濕度傳感器相關開發類似溫度傳感器
開發指導
開發步驟
（1）從device info HCS 的Sensor Host里讀取溫度傳感器驅動配置信息。
（2）加載溫度傳感器抽象驅動，調用初始化接口，完成Sensor器件驅動資源分配和數據處理隊列創建。
（3）從temperature_xxx_config HCS里讀取溫度傳感器器件差異化驅動配置和私有化配置信息。
（4）溫度傳感器差異化驅動，調用通用配置解析接口，完成器件屬性信息解析，器件寄存器解析。
（5）溫度傳感器差異化驅動完成器件探測，并分配溫度傳感器配置資源，完成溫度傳感器差異化接口注冊。
（6）溫度傳感器器件探測成功之后，溫度傳感器差異化驅動通知溫度傳感器抽象驅動，注冊溫度傳感器設備到Sensor設備管理中。
開發實例
Sensor驅動模型提供標準化的器件驅動，開發者無需獨立開發，通過配置即可完成驅動的部署。對驅動模型抽象，屏蔽驅動與不同系統組件間的交互，使得驅動更具備通用性?；赟ensor驅動模型，加載溫度傳感器驅動。溫度傳感器選擇通訊接口方式為IIC,廠家選擇Sensirion,器件類型為SHT30的溫度傳感器傳器。
1.溫度傳感器抽象驅動實現。
- 溫度傳感器抽象驅動在Sensor Host中的配置信息。
代碼實現路徑為：
vendor\hihope\rk3568\hdf_config\khdf\device_info\device_info.hcs (RK3568配置路徑)
vendor\unionman\unionpi_tiger\hdf_config\khdf\device_info\device_info.hcs (A311D配置路徑)
具體代碼如下:
/* 溫度傳感器設備HCS配置 */
device_sensor_temperature :: device {
device0 :: deviceNode {
policy = 1; /* policy字段是驅動服務發布的策略 */
priority = 130; /* 溫度傳感器驅動啟動優先級（0-200），值越大優先級越低，建議默認配100，優先級相同則不保證device的加載順序 */
preload = 0; /* 驅動按需加載字段，0表示加載，2表示不加載 */
permission = 0664; /* 驅動創建設備節點權限 */
moduleName = "HDF_SENSOR_TEMPERATURE"; /* 溫度傳感器驅動名稱，該字段的值必須和驅動入口結構的moduleName值一致 */
serviceName = "hdf_sensor_temperature"; /* 溫度傳感器驅動對外發布服務的名稱，必須唯一 */
deviceMatchAttr = "hdf_sensor_temperature_driver"; /* 驅動私有數據匹配的關鍵字，必須和驅動私有數據配置表中的match_attr值相等 */
}
}
- 溫度傳感器抽象驅動入口函數實現。
代碼實現路徑為 \drivers\framework\model\sensor\driver\temperature\sensor_temperature_driver.c
定義溫度傳感器抽象驅動對應的HdfDriverEntry對象，其中，Driver Entry入口函數定義如下：
/*注冊溫度傳感器入口數據結構體對象*/
struct HdfDriverEntry g_sensorTemperatureDevEntry = {
.moduleVersion = 1, /*溫度傳感器模塊版本號*/
.moduleName = "HDF_SENSOR_TEMPERATURE", /*溫度傳感器模塊名，要與device_info.hcs文件里溫度傳感器moduleName字段值一樣*/
.Bind = TemperatureBindDriver, /*溫度傳感器綁定函數*/
.Init = TemperatureInitDriver, /*溫度傳感器初始化函數*/
.Release = TemperatureReleaseDriver, /*溫度傳感器資源釋放函數*/
};
/* 調用HDF_INIT將驅動入口注冊到HDF框架中，在加載驅動時HDF框架會先調用Bind函數,再調用Init函數加載該驅動，當Init調用異常時，HDF框架會調用Release釋放驅動資源并退出 */
HDF_INIT(g_sensorTemperatureDevEntry);
Bind接口實現驅動接口實例化，實現示例：
int32_t TemperatureBindDriver(struct HdfDeviceObject *device)
{
CHECK_NULL_PTR_RETURN_VALUE(device, HDF_ERR_INVALID_PARAM);
struct TemperatureDrvData *drvData = (struct TemperatureDrvData *)OsalMemCalloc(sizeof(*drvData));
if (drvData == NULL) {
HDF_LOGE("%s: Malloc Temperature drv data fail!", __func__);
return HDF_ERR_MALLOC_FAIL;
}
drvData->ioService.Dispatch = DispatchTemperature;
drvData->device = device;
device->service = &drvData->ioService;
g_TemperatureDrvData = drvData;
return HDF_SUCCESS;
}
Init接口實現驅動接口實例化，實現示例：
int32_t TemperatureInitDriver(struct HdfDeviceObject *device)
{
CHECK_NULL_PTR_RETURN_VALUE(device, HDF_ERR_INVALID_PARAM);
struct TemperatureDrvData *drvData = (struct TemperatureDrvData *)device->service;
CHECK_NULL_PTR_RETURN_VALUE(drvData, HDF_ERR_INVALID_PARAM);
if (InitTemperatureData(drvData) != HDF_SUCCESS) {
HDF_LOGE("%s: Init Temperature config failed", __func__);
return HDF_FAILURE;
}
drvData->TemperatureCfg = (struct SensorCfgData *)OsalMemCalloc(sizeof(*drvData->TemperatureCfg));
if (drvData->TemperatureCfg == NULL) {
HDF_LOGE("%s: Malloc Temperature config data failed", __func__);
return HDF_FAILURE;
}
drvData->TemperatureCfg->regCfgGroup = &g_regCfgGroup[0];
HDF_LOGI("%s: Init Temperature driver success", __func__);
return HDF_SUCCESS;
}
Release接口在驅動卸載或者Init執行失敗時，會調用此接口釋放資源：
void TemperatureReleaseDriver(struct HdfDeviceObject *device)
{
CHECK_NULL_PTR_RETURN(device);
struct TemperatureDrvData *drvData = (struct TemperatureDrvData *)device->service;
CHECK_NULL_PTR_RETURN(drvData);
//器件在位，釋放已分配資源
if (drvData->detectFlag && drvData->TemperatureCfg != NULL) {
TemperatureReleaseCfgData(drvData->TemperatureCfg);
}
OsalMemFree(drvData->TemperatureCfg);
drvData->TemperatureCfg = NULL;
//器件在位，銷毀工作隊列資源
HdfWorkDestroy(&drvData->TemperatureWork);
HdfWorkQueueDestroy(&drvData->TemperatureWorkQueue);
OsalMemFree(drvData);
}
溫度傳感器抽象驅動內部接口開發實現示例:
提供給差異化驅動的初始化接口，完成溫度傳感器器件的基本配置信息解析（溫度傳感器信息，溫度傳感器總線配置，溫度傳感器器件探測寄存器配置），器件探測，器件寄存器解析。
static int32_t InitTemperatureAfterDetected(struct SensorCfgData *config)
{
struct SensorDeviceInfo deviceInfo;
CHECK_NULL_PTR_RETURN_VALUE(config, HDF_ERR_INVALID_PARAM);
//初始化溫度傳感器接口函數
if (InitTemperatureOps(config, &deviceInfo) != HDF_SUCCESS) {
HDF_LOGE("%s: Init Temperature ops failed", __func__);
return HDF_FAILURE;
}
//注冊溫度傳感器設備到設備管理模塊
if (AddSensorDevice(&deviceInfo) != HDF_SUCCESS) {
HDF_LOGE("%s: Add Temperature device failed", __func__);
return HDF_FAILURE;
}
//器件寄存器解析
if (ParseSensorRegConfig(config) != HDF_SUCCESS) {
HDF_LOGE("%s: Parse sensor register failed", __func__);
(void)DeleteSensorDevice(&config->sensorInfo);
ReleaseSensorAllRegConfig(config);
ReleaseSensorDirectionConfig(config);
return HDF_FAILURE;
}
return HDF_SUCCESS;
}
struct SensorCfgData *TemperatureCreateCfgData(const struct DeviceResourceNode *node)
{
struct TemperatureDrvData *drvData = TemperatureGetDrvData();
if (drvData == NULL || node == NULL) {
HDF_LOGE("%s: Temperature node pointer NULL", __func__);
return NULL;
}
//如果器件不在位，返回進行下個器件探測
if (drvData->detectFlag) {
HDF_LOGE("%s: Temperature sensor have detected", __func__);
return NULL;
}
if (drvData->TemperatureCfg == NULL) {
HDF_LOGE("%s: Temperature TemperatureCfg pointer NULL", __func__);
return NULL;
}
//設備基本配置信息解析
if (GetSensorBaseConfigData(node, drvData->TemperatureCfg) != HDF_SUCCESS) {
HDF_LOGE("%s: Get sensor base config failed", __func__);
goto BASE_CONFIG_EXIT;
}
//如果器件不在位，返回進行下個器件探測
if (DetectSensorDevice(drvData->TemperatureCfg) != HDF_SUCCESS) {
HDF_LOGI("%s: Temperature sensor detect device no exist", __func__);
drvData->detectFlag = false;
goto BASE_CONFIG_EXIT;
}
drvData->detectFlag = true;
//器件寄存器解析
if (InitTemperatureAfterDetected(drvData->TemperatureCfg) != HDF_SUCCESS) {
HDF_LOGI("%s: Temperature sensor detect device no exist", __func__);
goto INIT_EXIT;
}
return drvData->TemperatureCfg;
INIT_EXIT:
(void)ReleaseSensorBusHandle(&drvData->TemperatureCfg->busCfg);
BASE_CONFIG_EXIT:
drvData->TemperatureCfg->root = NULL;
(void)memset_s(&drvData->TemperatureCfg->sensorInfo,
sizeof(struct SensorBasicInfo), 0, sizeof(struct SensorBasicInfo));
(void)memset_s(&drvData->TemperatureCfg->busCfg, sizeof(struct SensorBusCfg), 0, sizeof(struct SensorBusCfg));
(void)memset_s(&drvData->TemperatureCfg->sensorAttr, sizeof(struct SensorAttr), 0, sizeof(struct SensorAttr));
return drvData->TemperatureCfg;
}
2.溫度傳感器差異化驅動實現。
- 溫度傳感器差異化驅動在Sensor Host中的配置信息。
代碼實現路徑為：
vendor\hihope\rk3568\hdf_config\khdf\device_info\device_info.hcs
vendor\unionman\unionpi_tiger\hdf_config\device_info\device_info.hcs
/* 溫度傳感器SHT30設備HCS配置 */
device_temperature_sht30 :: device {
device0 :: deviceNode {
policy = 1; /* policy字段是驅動服務發布的策略 */
priority = 140; /* 溫度傳感器SHT30驅動啟動優先級（0-200），值越大優先級越低，建議默認配100，優先級相同則不保證device的加載順序 */
preload = 0; /* 驅動按需加載字段，0表示加載，2表示不加載 */
permission = 0664; /* 驅動創建設備節點權限 */
moduleName = "HDF_SENSOR_TEMPERATURE_SHT30"; /* 溫度傳感器結構的moduleName值一致 */
serviceName = "hdf_temperature_sht30"; /* 溫度傳感器SHT30驅動對外發布服務的名稱，必須唯一 */
deviceMatchAttr = "hdf_sensor_temperature_sht30_driver"; /* 溫度傳感器SHT30驅動私有數據匹配的關鍵字，必須和驅動私有數據配置表中的match_attr值相等 */
}
}
溫度傳感器差異化驅動私有HCS配置。
代碼路徑如下：
vendor\hihope\rk3568\hdf_config\khdf\sensor\temperature\temperature_sht30_config.hcs
vendor\unionman\unionpi_tiger\hdf_config\khdf\sensor\temperature\temperature_sht30_config.hcs
#include "../sensor_common.hcs"
root {
temperature_sht30_chip_config : sensorConfig {
match_attr = "hdf_sensor_temperature_sht30_driver";
sensorInfo :: sensorDeviceInfo {
sensorName = "temperature_sht30";
vendorName = "sensirion"; // max string length is 16 bytes
sensorTypeId = 9; // enum SensorTypeTag
sensorId = 2; // user define sensor id
power = 230;
minDelay = 0;
maxDelay = 0;
}
sensorBusConfig :: sensorBusInfo {
busType = 0; // 0:i2c 1:spi
busNum = 3;
busAddr = 0x44;
regWidth = 2; // 2 byte
}
sensorIdAttr :: sensorIdInfo {
chipName = "sht30";
chipIdRegister = 0xf32d;
chipIdValue = 0x80;
}
sensorRegConfig {
/* regAddr: register address
value: config register value
len: size of value
mask: mask of value
delay: config register delay time (ms)
opsType: enum SensorOpsType 0-none 1-read 2-write 3-read_check 4-update_bit
calType: enum SensorBitCalType 0-none 1-set 2-revert 3-xor 4-left shift 5-right shift
shiftNum: shift bits
debug: 0-no debug 1-debug
save: 0-no save 1-save
*/
/* regAddr, value, mask, len, delay, opsType, calType, shiftNum, debug, save */
initSeqConfig = [
0x30a2, 0x0, 0x0, 0, 5, 2, 0, 0, 0, 0
];
enableSeqConfig = [
0x2c06, 0x0, 0x0, 0, 5, 2, 0, 0, 0, 0
];
disableSeqConfig = [
0x2400, 0x0, 0x0, 0, 5, 2, 0, 0, 0, 0
];
}
}
}
- 溫度傳感器差異化驅動入口函數實現：
代碼實現路徑為 drivers/peripheral/sensor/chipset/temperature/temperature_sht30.c
定義溫度傳感器差異化驅動對應的HdfDriverEntry對象，其中，Driver Entry入口函數定義如下：
/*注冊溫度傳感器SHT30入口數據結構體對象*/
struct HdfDriverEntry g_temperatureSht30DevEntry = {
.moduleVersion = 1, /*溫度傳感器模塊版本號*/
.moduleName = "HDF_SENSOR_TEMPERATURE_SHT30", /*溫度傳感器SHT30模塊名，要與device_info.hcs文件里溫度傳感器SHT30 moduleName字段值一樣*/
.Bind = Sht30BindDriver, /*溫度傳感器SHT30綁定函數*/
.Init = Sht30InitDriver, /*溫度傳感器SHT30初始化函數*/
.Release = Sht30ReleaseDriver, /*溫度傳感器SHT30資源釋放函數*/
};
/* 調用HDF_INIT將驅動入口注冊到HDF框架中，在加載驅動時HDF框架會先調用Bind函數,再調用Init函數加載該驅動，當Init調用異常時，HDF框架會調用Release釋放驅動資源并退出 */
HDF_INIT(g_temperatureSht30DevEntry);
Bind驅動接口實例化，實現示例：
static int32_t Sht30BindDriver(struct HdfDeviceObject *device)
{
CHECK_NULL_PTR_RETURN_VALUE(device, HDF_ERR_INVALID_PARAM);
struct Sht30DrvData *drvData = (struct Sht30DrvData *)OsalMemCalloc(sizeof(*drvData));
if (drvData == NULL) {
HDF_LOGE("%s: malloc drv data fail", __func__);
return HDF_ERR_MALLOC_FAIL;
}
drvData->ioService.Dispatch = DispatchSht30;
drvData->device = device;
device->service = &drvData->ioService;
g_sht30DrvData = drvData;
return HDF_SUCCESS;
}
Init驅動接口實例化，實現示例：
static int32_t Sht30InitDriver(struct HdfDeviceObject *device)
{
int32_t ret;
struct TemperatureOpsCall ops;
CHECK_NULL_PTR_RETURN_VALUE(device, HDF_ERR_INVALID_PARAM);
struct Sht30DrvData *drvData = (struct Sht30DrvData *)device->service;
CHECK_NULL_PTR_RETURN_VALUE(drvData, HDF_ERR_INVALID_PARAM);
//創建傳感器配置數據接口，完成器件探測，私有數據配置解析
drvData->sensorCfg = TemperatureCreateCfgData(device->property);
if (drvData->sensorCfg == NULL || drvData->sensorCfg->root == NULL) {
HDF_LOGD("%s: Creating temperature cfg failed because detection failed", __func__);
return HDF_ERR_NOT_SUPPORT;
}
//注冊差異化接口
ops.Init = NULL;
ops.ReadData = ReadSht30Data;
ret = TemperatureRegisterChipOps(&ops);
if (ret != HDF_SUCCESS) {
HDF_LOGE("%s: Register temperature failed", __func__);
return HDF_FAILURE;
}
//初始化器件配置
ret = InitSht30(drvData->sensorCfg);
if (ret != HDF_SUCCESS) {
HDF_LOGE("%s: Init SHT30 temperature sensor failed", __func__);
return HDF_FAILURE;
}
return HDF_SUCCESS;
}
Release驅動接口實例化，實現示例：
static void Sht30ReleaseDriver(struct HdfDeviceObject *device)
{
CHECK_NULL_PTR_RETURN(device);
struct Sht30DrvData *drvData = (struct Sht30DrvData *)device->service;
CHECK_NULL_PTR_RETURN(drvData);
if (drvData->sensorCfg != NULL) {
TemperatureReleaseCf gData(drvData->sensorCfg);
drvData->sensorCfg = NULL;
}
OsalMemFree(drvData);
}
溫度傳感器差異化函數接口實現示例。
需要開發者實現的ReadSht30Data接口函數，在Sht30InitDriver函數里面注冊此函數。
int32_t ReadSht30Data(struct SensorCfgData *data)
{
int32_t ret;
static int32_t temperature;
struct TemperatureData rawData = { 0 };
OsalTimespec time;
struct SensorReportEvent event;
(void)memset_s(&time, sizeof(time), 0, sizeof(time));
(void)memset_s(&event, sizeof(event), 0, sizeof(event));
if (OsalGetTime(&time) != HDF_SUCCESS) {
HDF_LOGE("%s: Get time failed", __func__);
return HDF_FAILURE;
}
event.timestamp = time.sec * SENSOR_SECOND_CONVERT_NANOSECOND + time.usec * SENSOR_CONVERT_UNIT;
ret = ReadSht30RawData(data, &rawData, &event.timestamp);
if (ret != HDF_SUCCESS) {
HDF_LOGE("%s: SHT30 read raw data failed", __func__);
return HDF_FAILURE;
}
temperature = rawData.temperature;
event.sensorId = data->sensorInfo.sensorId;
event.mode = SENSOR_WORK_MODE_REALTIME;
event.dataLen = sizeof(temperature);
event.data = (uint8_t *)&temperature;
ret = ReportSensorEvent(&event);
if (ret != HDF_SUCCESS) {
HDF_LOGE("%s: report data failed", __func__);
}
return ret;
}
編譯指導
在編譯的過程中，首先需要在Sensor Host中的配置信息中設置具體器件是否要驅動加載。
HCS路徑：
vendor\hihope\rk3568\hdf_config\khdf\device_info\device_info.hcs
device_sensor_temperature :: device {
device0 :: deviceNode {
policy = 1;
priority = 130;
preload = 0; /* 驅動按需加載字段，0表示加載，2表示不加載 */
permission = 0664;
moduleName = "HDF_SENSOR_TEMPERATURE";
serviceName = "hdf_sensor_temperature";
deviceMatchAttr = "hdf_sensor_temperature_driver";
}
}
device_temperature_sht30 :: device {
device0 :: deviceNode {
policy = 1;
priority = 140;
preload = 0; /* 驅動按需加載字段，0表示加載，2表示不加載 */
permission = 0664;
moduleName = "HDF_SENSOR_TEMPERATURE_SHT30";
serviceName = "hdf_temperature_sht30";
deviceMatchAttr = "hdf_sensor_temperature_sht30_driver";
}
}傳感器驅動實現在內核態，代碼參與編譯通過適配makefile實現，并通過內核模塊宏定義，控制溫度傳感器設備驅動是否參與編譯。
Makefile路徑:
drivers\hdf_core\adapter\khdf\linux\model\sensor\Makefile
......
obj-$(CONFIG_DRIVERS_HDF_SENSOR_TEMPERATURE) += $(SENSOR_ROOT_DIR)/temperature/sensor_temperature_driver.o
obj-$(CONFIG_DRIVERS_HDF_SENSOR_TEMPERATURE_SHT30) += $(SENSOR_ROOT_DIR)/chipset/temperature/temperature_sht30.o
.....
-Idrivers/peripheral/sensor/driver/temperature \
-Idrivers/peripheral/sensor/driver/chipset/temperature \
......
Kconfig路徑：
drivers\hdf_core\adapter\khdf\linux\model\sensor\Kconfig
溫度傳感器驅動加載，將DRIVERS_HDF_SENSOR_TEMPERATURE;
DRIVERS_HDF_SENSOR_TEMPERATURE_SHT30宏字段設置為y即可。
溫度傳感器驅動不加載，將DRIVERS_HDF_SENSOR_TEMPERATURE; DRIVERS_HDF_SENSOR_TEMPERATURE_SHT30宏字段設置為is not set即可。
內核配置路徑(以RK3568為例)：
kernel/linux/config/linux-5.10/arch/arm64/configs/rk3568_standard_defconfig
......
# CONFIG_DRIVERS_HDF_INPUT_INFRARED is not set
# CONFIG_DRIVERS_HDF_WIFI is not set
# CONFIG_DRIVERS_HDF_BT is not set
CONFIG_DRIVERS_HDF_SENSOR=y
CONFIG_DRIVERS_HDF_SENSOR_ACCEL=y
CONFIG_DRIVERS_HDF_SENSOR_ACCEL_MXC6655XA=y
CONFIG_DRIVERS_HDF_SENSOR_TEMPERATURE=y
CONFIG_DRIVERS_HDF_SENSOR_TEMPERATURE_SHT30=y
.....
實例運行
參考代碼：
#include <stdio.h>
#include <unistd.h>
#include "hdf_base.h"
#include "hdf_log.h"
#include "hdf_sbuf.h"
#include "hdf_io_service_if.h"
#include "sensor_if.h"
#include "sensor_type.h"
/* 創建回調函數 */
static int32_t SensorDataCallback(const struct SensorEvents *event)
{
if (event == NULL) {
return HDF_FAILURE;
}
float sensorData =*((float *)event->data);
printf("sensor id [%d], data : %.2f\n", event->sensorId, sensorData);
return HDF_SUCCESS;
}
void SensorSample(void)
{
int ret;
struct SensorInformation *sensorInfo = NULL;
int32_t count = 0;
int32_t sensorInterval = 200000000; /* 數據采樣率設置200毫秒，單位納秒 */
int32_t reportInterval = 400000000;
/* 1.創建傳感器接口實例 */
const struct SensorInterface *sensorDev = NewSensorInterfaceInstance();
if (sensorDev == NULL) {
return;
}
printf("NewSensorInterfaceInstance success\n");
/* 2.訂閱者注冊傳感器數據回調處理函數 */
ret = sensorDev->Register(TRADITIONAL_SENSOR_TYPE, SensorDataCallback);
if (ret != 0) {
return;
}
printf("Register success\n");
/* 3.獲取設備支持的Sensor列表 */
ret = sensorDev->GetAllSensors(&sensorInfo, &count);
if (ret != 0) {
return;
}
printf("GetAllSensors count: %d\n", count);
for (int i = 0; i < count; i++)
{
printf("sensor [%d] : sensorName:%s, vendorName:%s, sensorTypeId:%d, sensorId:%d\n", i,
sensorInfo[i].sensorName, sensorInfo[i].vendorName, sensorInfo[i].sensorTypeId, sensorInfo[i].sensorId);
}
for (int i = 0; i < count; i++)
{
/* 4.設置傳感器采樣率 */
ret = sensorDev->SetBatch(sensorInfo[i].sensorId, sensorInterval, reportInterval);
if (ret != 0) {
printf("SetBatch failed\n ,ret: %d",ret);
continue;
}
printf("SetBatch success\n");
/* 5.使能傳感器 */
ret = sensorDev->Enable(sensorInfo[i].sensorId);
if (ret != 0) {
continue;
}
printf("Enable success\n");
usleep(1000 * 1000);
/* 6.去使能傳感器 */
ret = sensorDev->Disable(sensorInfo[i].sensorId);
if (ret != 0) {
continue;
}
printf("Disable success\n");
}
/* 7.取消傳感器數據訂閱函數 */
ret = sensorDev->Unregister(TRADITIONAL_SENSOR_TYPE, SensorDataCallback);
if (ret != 0) {
return;
}
printf("Unregister success\n");
/* 8.釋放傳感器接口實例 */
ret = FreeSensorInterfaceInstance();
if (ret != 0) {
return;
}
printf("FreeSensorInterfaceInstance success\n");
}
int main(int argc, char *argv[])
{
SensorSample();
return HDF_SUCCESS;
}

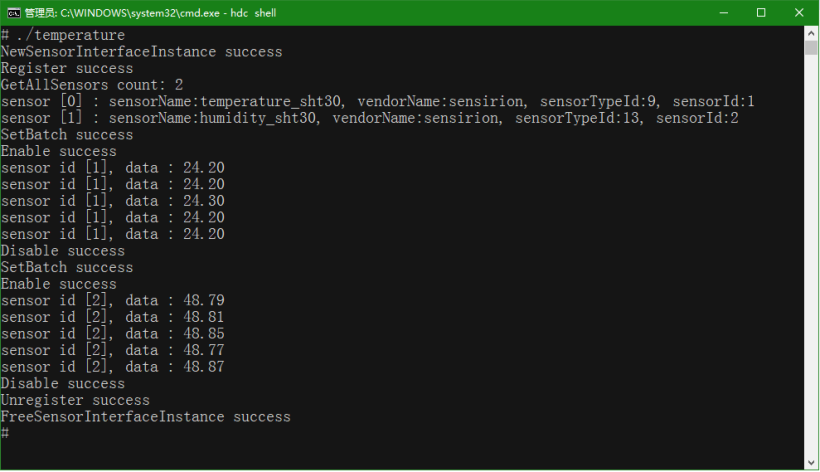

RK3568運行日志如下：

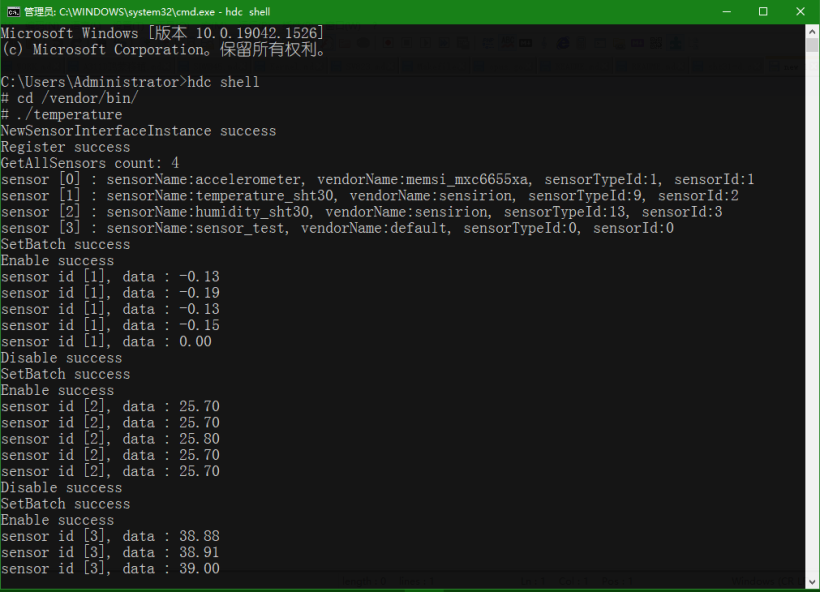

A311D運行日志：
