* @ingroup  iot_uart
* @brief  Reads data in specified timeout time.CNomment:在指定超時時間內讀取數據。CNend
*
* @par 描述:
*           Reads data in specified timeout time.CNomment:在指定超時時間內讀取數據。CNend
*           if Reads all data before timeout, function will return.
CNomment:超時前讀取完成所有數據后，函數會立即返回。CNend
*
* @attention This API must be used after the hi_uart_open function is called.
CNcomment:須在調用完hi_uart_init函數之后使用。CNend
* @param  id        [IN] type #hi_uart_idx，UART port id. CNcomment:UART端口號。CNend
* @param  data      [OUT] type #hi_u8*，Start address of the data to be read.CNcomment:讀到數據的首地址。CNend
* @param  data_len  [IN] type #hi_u32，Number of bytes to be read.CNcomment:要讀取數據的字節數。CNend
* @param  timeout_ms  [IN] type #hi_u32，timeout.CNcomment:超時時間。CNend
*
* @retval #>=0 Number of bytes that are actually read.CNcomment:實際讀到數據的字節數。CNend
* @retval #HI_ERR_FAILURE  Data read error.CNcomment:讀數據失敗。CNend
* @par 依賴:
*            @li hi_uart.h：Describes UART APIs.CNcomment:UART相關接口。CNend
* @see  hi_uart_write。
*/
hi_s32 hi_uart_read_timeout(hi_uart_idx id, hi_u8 *data, hi_u32 len, hi_u32 timeout_ms);

/**
 * @brief Defines basic attributes of a UART port.
 *
 * @since 2.2
 * @version 2.2
 */
typedef struct {
    /** Baud rate */
    unsigned int baudRate;
    /** Data bits */
    IotUartIdxDataBit dataBits;
    /** Stop bit */
    IotUartStopBit stopBits;
    /** Parity */
    IotUartParity parity;
    /** Rx block state */
    IotUartBlockState rxBlock;
    /** Tx block state */
    IotUartBlockState txBlock;
    /** Padding bit */
    unsigned char pad;
} IotUartAttribute;

#define BLUE_RX_1 1
#define BLUE_TX_0 0
int Bluetooth_Init()
{
    // 初始化GPIO
    IoTGpioInit(HI_IO_NAME_GPIO_0);
    hi_io_set_func(BLUE_TX_0, HI_IO_FUNC_GPIO_0_UART1_TXD);
    IoTGpioInit(HI_IO_NAME_GPIO_1);
    hi_io_set_func(BLUE_RX_1, HI_IO_FUNC_GPIO_1_UART1_RXD);

    // 配置UART 1參數
    IotUartAttribute my_param; //={115200,8,1,HI_UART_PARITY_NONE,0,0};
     /** Baud rate */
    my_param.baudRate=115200;
    /** Data bits */
    my_param.dataBits=8;
    /** Stop bit */
    my_param.stopBits=1;
    /** Parity */
    my_param.parity=HI_UART_PARITY_NONE;
    return  IoTUartInit(HI_UART_IDX_1, &my_param);
}

// 串口藍牙數據交互
static void BluetoothTask(void *arg)
{
    char send_data[] = "Hello OpenHarmony";
    IoTUartWrite(HI_UART_IDX_1, (unsigned char*)send_data, strlen(send_data));

    char get_data[8] = {0};
    int data_len = 8;
    while (1)
    {
        usleep(500000); // 0.5s
        ret = IoTUartRead(HI_UART_IDX_1, get_data, data_len);
        if (ret == 0)
            printf("get_data = %s\n", get_data);
        else
            printf("get_data Falile\r\n");
    }
}

#include <stdio.h>
#include <unistd.h>
#include "ohos_init.h"
#include "cmsis_os2.h"

#include <string.h>
#include "hi_io.h"  // 定義了GPIO編號、描述GPIO功能
#include "hi_uart.h"
#include "iot_uart.h"

#define BLUE_RX_1 1
#define BLUE_TX_0 0

int Bluetooth_Init()
{
    // 初始化GPIO
    IoTGpioInit(HI_IO_NAME_GPIO_0);
    hi_io_set_func(BLUE_TX_0, HI_IO_FUNC_GPIO_0_UART1_TXD);
    IoTGpioInit(HI_IO_NAME_GPIO_1);
    hi_io_set_func(BLUE_RX_1, HI_IO_FUNC_GPIO_1_UART1_RXD);

    // 配置UART 1參數
    IotUartAttribute my_param; //={115200,8,1,HI_UART_PARITY_NONE,0,0};
     /** Baud rate */
    my_param.baudRate=115200;
    /** Data bits */
    my_param.dataBits=8;
    /** Stop bit */
    my_param.stopBits=1;
    /** Parity */
    my_param.parity=HI_UART_PARITY_NONE;
    return  IoTUartInit(HI_UART_IDX_1, &my_param);
}
//測試藍牙
static void BluetoothTask(void *arg)
{
    (void)arg;
    sleep(2);
    int ret = 1;
    ret = Bluetooth_Init();
    if (ret != 0)
    {
        printf("Uart1 init failed! \n");
        return;
    }
    char send_data[] = "Hello OpenHarmony";
    IoTUartWrite(HI_UART_IDX_1, (unsigned char*)send_data, strlen(send_data));

    char get_data[8] = {0};
    int data_len = 8;
    while (1)
    {
        usleep(500000); // 0.5s
        ret = IoTUartRead(HI_UART_IDX_1, get_data, data_len);
        if (ret == 0)
            printf("get_data = %s\n", get_data);
        else
            printf("get_data Falile\r\n");
    }
}

static void BluetoothDemo(void)
{
    osThreadAttr_t attr;
    attr.name = "BluetoothTask";
    attr.attr_bits = 0U;
    attr.cb_mem = NULL;
    attr.cb_size = 0U;
    attr.stack_mem = NULL;
    attr.stack_size = 4096;
    attr.priority = osPriorityNormal;
    if (osThreadNew(BluetoothTask, NULL, &attr) == NULL)
    {
        printf("[BlueDemo] Falied to create BluetoothTask!\n");
    }
}
APP_FEATURE_INIT(BluetoothDemo);

static_library("led_example") {
    sources = [
        # "led_example.c",
        # "gpio_input_output.c",
        # "gpio_adc.c",
        # "gpio_pwm.c",
        "uart_bluetooth.c",
    ]
    include_dirs = [
        "http://utils/native/lite/include",
        "http://kernel/liteos_m/kal/cmsis",
        "http://base/iot_hardware/peripheral/interfaces/kits",
        "http://device/hisilicon/hispark_pegasus/sdk_liteos/include",
    ]
}

/**
 * @ingroup iot_i2c
 *
 * I2C TX/RX data descriptor. CNcomment:I2C發送/接收數據描述符。CNend
 */
typedef struct {
    hi_u8*  send_buf;        /**< Data TX pointer. The user needs to ensure that no null pointer is transferred.
                                CNcomment:數據發送指針CNend */
    hi_u32  send_len;        /**< Length of sent data (unit: byte).
                                CNcomment:發送數據長度（單位：byte）CNend */
    hi_u8*  receive_buf;     /**< Data RX pointer. CNcomment:數據接收指針CNend */
    hi_u32  receive_len;     /**< Length of received data (unit: byte).
                                CNcomment:接收數據長度（單位：byte）CNend */
} hi_i2c_data;

蜂鳴器——PWM 控制聲音的頻率和音量
 GPIO09: PWM0
 MQ2 燃?xì)鈧鞲衅鳌狝DC 讀取模擬值
 GPIO11: ADC5
 AHT20 溫濕度傳感器——I2C 接口，設備地址 0x38
 GPIO13: I2C0_SDA
 GPIO14: I2C0_SCL

applications\sample\wifi-iot\app\iothardware\aht20.h ：聲明相關函數。
applications\sample\wifi-iot\app\iothardware\aht20.c ：初始化傳感器，讀取并處理數據。
applications\sample\wifi-iot\app\iothardware\environment.c ：本實驗任務在此文件開啟線程。

#define AHT20_SCL 14
#define AHT20_SDA 13
#define AHT20_I2C_IDX 0              //--i2c0
#define AHT20_I2C_BAUDRATE 400*1000  //--i2c波特率400K
#define AHT20_ADDR 0x38
#define AHT20_READ  ((0x38<<1)|0x1)  //--SDA-讀
#define AHT20_WRITE ((0x38<<1)|0x0)  //--SDA-寫
#define AHT20_INIT_CMD 0xBE          //--初始化(校準)命令
#define AHT20_INIT_CMD_B1 0x08
#define AHT20_INIT_CMD_B2 0x00
#define AHT20_TRAG_CMD 0xAC          //--觸發測量
#define AHT20_TRAG_CMD_B1 0x33
#define AHT20_TRAG_CMD_B2 0
#define AHT20_RESET_CMD 0xBA         //--軟復位（不斷電復位）
#define AHT20_STATUS 0x71            //--獲取狀態位
#define AHT20_WAIT_TIME 100         //復位、傳感器測量數據等待時間 ms

//使能 i2c-0
void AHT20_I2C_Init(void)
{
    IoTGpioInit(AHT20_SDA);
    hi_io_set_func(AHT20_SDA,HI_IO_FUNC_GPIO_13_I2C0_SDA);
    IoTGpioInit(AHT20_SCL);
    hi_io_set_func(AHT20_SCL,HI_IO_FUNC_GPIO_14_I2C0_SCL);
    hi_i2c_init(AHT20_I2C_IDX,AHT20_I2C_BAUDRATE);
}
// 讀取數據
static uint32_t AHT20_Read(uint8_t *data, uint32_t dataLen)
{
  hi_i2c_idx id = AHT20_I2C_IDX;
  hi_i2c_data i2cData;
  i2cData.receive_buf = data;
  i2cData.receive_len = dataLen;
  i2cData.send_buf = NULL;
  i2cData.send_len = 0;
  uint32_t result;
  result = hi_i2c_read((hi_i2c_idx)id,AHT20_READ,&i2cData);
  if(result != IOT_SUCCESS){
    printf("AHT20_Read() Failed ,%0X\n",result);
    return result; }
  return IOT_SUCCESS ;
}
// 發送數據
static uint32_t AHT20_Write(uint8_t *data, uint32_t dataLen)
{
  hi_i2c_idx id = AHT20_I2C_IDX;
  hi_i2c_data i2cData;
  i2cData.receive_buf = NULL;
  i2cData.receive_len = 0;
  i2cData.send_buf = data;
  i2cData.send_len = dataLen;
  uint32_t result;
  result = hi_i2c_write((hi_i2c_idx)id,AHT20_WRITE,&i2cData);
  if(result != IOT_SUCCESS){
    printf("AHT20_Write() Failed ,%0X\n",result);
    return result; }
  return IOT_SUCCESS ;
}

//獲取狀態
static uint32_t AHT20_Status(void)
{
  uint8_t statuscmd={AHT20_STATUS};
  return AHT20_Read(&statuscmd,sizeof(statuscmd));
}
//軟復位
static uint32_t AHT20_Reset(void)
{
  uint8_t reset = {AHT20_RESET_CMD};
  return AHT20_Write(&reset,sizeof(reset));
}
//校準
static uint32_t AHT20_Initcmd(void)
{
  uint8_t initialcmd[] ={AHT20_INIT_CMD, AHT20_INIT_CMD_B1,AHT20_INIT_CMD_B2};
  return AHT20_Write(&initialcmd,sizeof(initialcmd));
}
//觸發測量
uint32_t AHT20_StartMeasure(void)
{
  uint8_t startcmd[] ={AHT20_TRAG_CMD, AHT20_TRAG_CMD_B1,AHT20_TRAG_CMD_B2};
  return AHT20_Write(&startcmd,sizeof(startcmd));
}

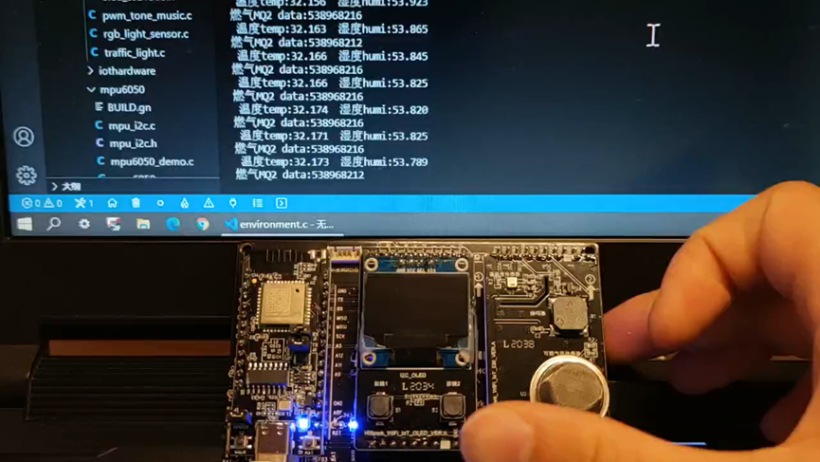

/ *程序功能：
    1. 讀取燃?xì)鈧鞲衅鞯腁DC值;
    2. 讀取AHT20溫濕度傳感器的數值;
    3. 溫度、濕度上升（哈一口氣）蜂鳴器叫幾聲.
   基于hi3861_hdu開發 編譯運行通過
*/
#include "aht20.h"
#define BEEP_PWM  0
#define BEEP_IO   9
#define MQ2_IO    11

static void EnviroTask(void *arg)
{
    (void) arg;
    unsigned int data;
    float temp;
    float humi;
    while(1)
    {
        if(hi_adc_read(HI_ADC_CHANNEL_5,&data,HI_ADC_EQU_MODEL_1,HI_ADC_CUR_BAIS_DEFAULT, 0)==0)
        { printf("燃?xì)釳Q2 data:%d\n",data);}

       AHT20_Calibrate();
       AHT20_StartMeasure();
       AHT20_GetMeasureResult(&temp, &humi);

       printf(" 溫度temp:%.3f ",temp);
       printf(" 濕度humi:%.3f\n",humi);
       if(temp>25) //溫度大于25攝氏度，蜂鳴器叫
       {
          IoTPwmStart(BEEP_PWM,90,40000);
       }
       else{
         IoTPwmStop(BEEP_PWM);
       }
    }
}

static void EnviroEntry(void)
{
    IoTGpioInit(BEEP_IO);
    hi_io_set_func(BEEP_IO,HI_IO_FUNC_GPIO_9_PWM0_OUT);
    IoTPwmInit(BEEP_PWM);

    IoTGpioInit(MQ2_IO);
    hi_io_set_func(MQ2_IO,HI_IO_FUNC_GPIO_5_GPIO);

    AHT20_I2C_Init();

    osThreadAttr_t attr;
    attr.name = "EnviroTask";
    attr.attr_bits = 0U;
    attr.cb_mem = NULL;
    attr.cb_size = 0U;
    attr.priority = 24;
    attr.stack_size = 4096;
    if(osThreadNew(EnviroTask,NULL,&attr)==NULL)
    {
        printf("[EnviroEntry] Failed to create EnviroTask!\n ");
    }
}
APP_FEATURE_INIT(EnviroEntry);

static_library("led_example") {
    sources = [
        # "led_example.c",
        # "gpio_input_output.c",
        # "gpio_adc.c",
        # "gpio_pwm.c",
        # "uart_bluetooth.c",
        "aht20.c",
        "environment.c",
    ]
    include_dirs = [
        "http://utils/native/lite/include",
        "http://kernel/liteos_m/kal/cmsis",
        "http://base/iot_hardware/peripheral/interfaces/kits",
        "http://device/hisilicon/hispark_pegasus/sdk_liteos/include",
    ]
}

// 初始化spi
hi_u32 hi_spi_init(hi_spi_idx spi_id, hi_spi_cfg_init_param init_param, const hi_spi_cfg_basic_info *param);
// 中斷模式配置
hi_u32 hi_spi_set_irq_mode(hi_spi_idx id, hi_bool irq_en);
// dma模式配置
hi_u32 hi_spi_set_dma_mode(hi_spi_idx id, hi_bool dma_en);
// 從機寫
hi_u32 hi_spi_slave_write(hi_spi_idx spi_id, hi_pvoid write_data, hi_u32 byte_len, hi_u32 time_out_ms);
// 從機度
hi_u32 hi_spi_slave_read(hi_spi_idx spi_id, hi_pvoid read_data, hi_u32 byte_len, hi_u32 time_out_ms);
// 主機寫
hi_u32 hi_spi_host_write(hi_spi_idx spi_id, hi_pvoid write_data, hi_u32 byte_len);
// 主機讀
hi_u32 hi_spi_host_read(hi_spi_idx spi_id, hi_pvoid read_data, hi_u32 byte_len);

/**
* @ingroup iot_i2s
*
* sample rate.
*/
typedef enum {
    HI_I2S_SAMPLE_RATE_8K = 8,
    HI_I2S_SAMPLE_RATE_16K = 16,
    HI_I2S_SAMPLE_RATE_32K = 32,
    HI_I2S_SAMPLE_RATE_48K = 48,
} hi_i2s_sample_rate;

/**
* @ingroup iot_i2s
*
* resolution.
*/
typedef enum {
    HI_I2S_RESOLUTION_16BIT = 16,
    HI_I2S_RESOLUTION_24BIT = 24,
} hi_i2s_resolution;

/**
* @ingroup iot_i2s
*
* I2S attributes.
*/
typedef struct {
    hi_i2s_sample_rate sample_rate;  /**< i2s sample rate, type hi_i2s_sample_rate.CNcomment:采樣率，類型為
                                          hi_i2s_sample_rate。CNend */
    hi_i2s_resolution resolution;   /**< i2s resolution, type hi_i2s_resolution.CNcomment:解析度，類型為
                                          hi_i2s_resolution。CNend */
} hi_i2s_attribute;
hi_u32 hi_i2s_init(const hi_i2s_attribute *i2s_attribute);
hi_u32 hi_i2s_read(hi_u8 *rd_data, hi_u32 rd_len, hi_u32 time_out_ms);
hi_u32 hi_i2s_write(hi_u8 *wr_data, hi_u32 wr_len, hi_u32 time_out_ms);
