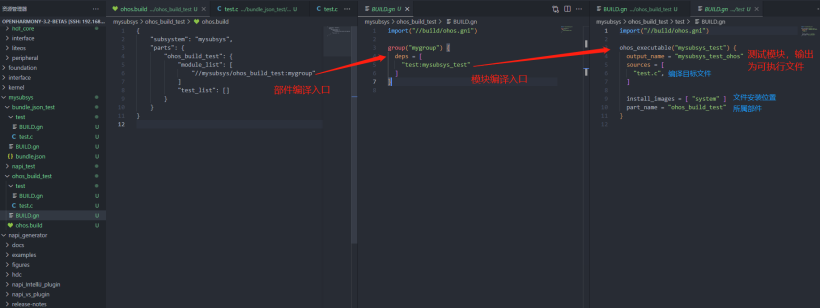

    "subsystem": "mysubsys"                    # mysubsys所屬子系統的名字
    "parts": {
        "ohos_build_test": {                    # ohos_build_test為部件名稱
            "module_list": [
                "http://mysubsys/ohos_build_test:mygroup"        # 部件編譯入口
            ]
            "test_list": []
        }
    }
}

{
    "name": "@ohos/sensor_lite",                                         # HPM部件英文名稱，格式"@組織/部件名稱"
    "description": "Sensor services",                                     # 部件功能一句話描述
    "version": "3.1",                                                     # 版本號，版本號與OpenHarmony版本號一致
    "license": "MIT",                                                     # 部件License
    "publishAs": "code-segment",                                         # HPM包的發布方式，當前默認都為code-segment
    "segment": {
        "destPath": ""
    },                                                                     # 發布類型為code-segment時為必填項，定義發布類型code-segment的代碼還原路徑（源碼路徑）
    "dirs": {"base/sensors/sensor_lite"},                                 # HPM包的目錄結構，字段必填內容可以留空
    "scripts": {},                                                         # HPM包定義需要執行的腳本，字段必填，值非必填
    "licensePath": "COPYING",
    "readmePath": {
        "en": "README.rst"
    },
    "component": {                                                         # 部件屬性
        "name": "sensor_lite",                                             # 部件名稱
        "subsystem": "",                                                 # 部件所屬子系統
        "syscap": [],                                                     # 部件為應用提供的系統能力
        "features": [],                                                  # 部件對外的可配置特性列表，一般與build中的sub_component對應，可供產品配置
        "adapted_system_type": [],                                         # 輕量小型和標準(standard)，可以是多個
        "rom": "92KB",                                                   # 部件ROM值
        "ram": "~200KB",                                                 # 部件RAM估值
        "deps": {
        "components": [                                                  # 部件依賴的其他部件
          "samgr_lite",
          "ipc_lite"
        ],
        "third_party": [                                                 # 部件依賴的三方開源軟件
          "bounds_checking_function"
        ]
      }
        "build": {                                                         # 編譯相關配置
            "sub_component": [
                ""//base/sensors/sensor_lite/services:sensor_service"",  # 部件編譯入口
            ],                                                             # 部件編譯入口，模塊在此處配置
            "inner_kits": [],                                             # 部件間接口
            "test": []                                                     # 部件測試用例編譯入口
        }
    }
 }

# C/C++模板
ohos_shared_library
ohos_static_library
ohos_executable
ohos_source_set

# 預編譯模板：
ohos_prebuilt_executable
ohos_prebuilt_shared_library
ohos_prebuilt_static_library

#hap模板
ohos_hap
ohos_app_scope
ohos_js_assets
ohos_resources

#其他常用模板
#配置文件
ohos_prebuilt_etc

#sa配置
ohos_sa_profile

import("http://build/ohos.gni")
ohos_executable("helloworld") {
  configs = []                       # 配置
  part_name = [string]               # 部件名稱
  subsystem_name = [string]          # 子系統名稱
  deps = []                          # 部件內模塊依賴

  external_deps = [                  # 跨部件模塊依賴定義，
  "part_name:module_name",           # 定義格式為 "部件名:模塊名稱"
  ]                                  # 這里依賴的模塊必須是依賴的部件聲明在inner_kits中的模塊
  ohos_test = []
  test_output_dir = []

  # Sanitizer配置，每項都是可選的，默認為false/空
  sanitize = {
    # 各個Sanitizer開關
    cfi = [boolean]               # 控制流完整性檢測
    cfi_cross_dso = [boolean]     # 開啟跨so調用的控制流完整性檢測
    integer_overflow = [boolean]  # 整數溢出檢測
    boundary_sanitize = [boolean] # 邊界檢測
    ubsan = [boolean]             # 部分ubsan選項
    all_ubsan = [boolean]         # 全量ubsan選項
    ...

    debug = [boolean]             # 調測模式
    blocklist = [string]          # 屏蔽名單路徑
  }

  testonly = [boolean]
  license_as_sources = []
  license_file = []                  # 后綴名是.txt的文件
  remove_configs = []
  static_link = []
  install_images = []
  module_install_dir = []            # 模塊安裝路徑，從system/，vendor/后開始指定
  relative_install_dir = []
  symlink_target_name = []
  output_dir = [directory]           # 存放輸出文件的目錄
  install_enable = [boolean]
  version_script = []
  use_exceptions = []
}

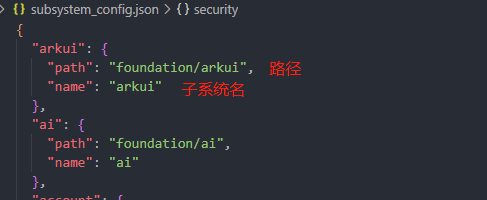

"mysubsys": {
    "path": "mysubsys",
    "name": "mysubsys"
  }

mysubsys
├── bundle_json_test
│   ├── BUILD.gn
│   ├── bundle.json
│   └── test
│       ├── BUILD.gn
│       └── test.c
└── ohos_build_test
    ├── BUILD.gn
    ├── ohos.build
    └── test
        ├── BUILD.gn
        └── test.c

#include "stdio.h"

int main()
{
    printf("test mysubsys for ohos.build\r\n");
    return 0;
}

#include "stdio.h"

int main()
{
    printf("test mysubsys for bundle.json\r\n");
    return 0;
}

./build.sh --product-name unionpi_tiger    #編譯
./device/board/unionman/unionpi_tiger/common/tools/packer-unionpi.sh # 鏡像打包

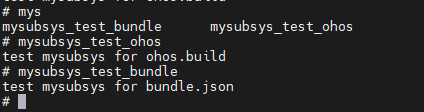

mysubsys_test_ohos
mysubsys_test_bundle
